Product overview

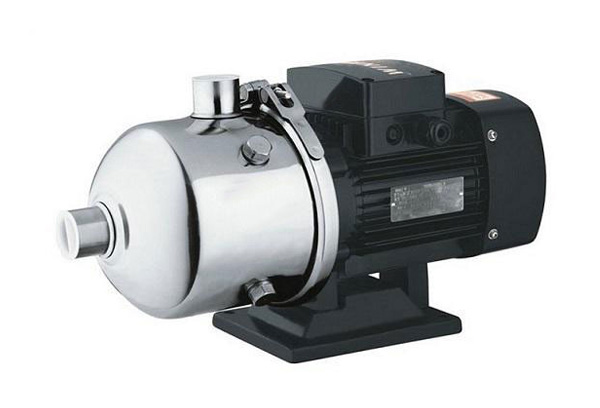

CHL, chlk and chlf (T) light horizontal multistage centrifugal pumps are equipped with repair free mechanical seals. The flow passage parts of the pump are made of stainless steel (304 or 316), with low noise, light corrosion resistance, beautiful appearance, small volume, light weight and long service life.
Scope of application
CHL, chlk and chlf (T) pumps are mainly used for household central air conditioning circulation and industrial liquid transmission. Such as demineralization water, soft water, purification system, light oil circulation and pressurization.
1) Small central air conditioning cycle
2) Cooling system
3) Industrial cleaning
4) Water treatment (water purification)
5) Aquaculture
6) Fertilization / metering system
7) Environmental applications
Working conditions
A liquid that is thin, clean, non condensing, non explosive, and does not contain solid particles or fibers.
Liquid temperature:
Normal temperature type - 15 ℃ to + 70 ℃
Hot water type + 70 ℃ to + 110 ℃
Ambient temperature + 40 ° C
Operating pressure: 10 bar
Medium pH: 4 ~ 9
electric machinery
The motor is totally enclosed, air-cooled two pole motor
Protection grade: IP55
Insulation class: F standard voltage,
50Hz:1×220-240V 3×220-240V 380-415Vv
CHL, chlk and chlf (T) pumps are mainly used for household central air conditioning circulation and industrial liquid transmission.
Such as demineralization water, soft water, purification system, light oil circulation and pressurization.
1) Small central air conditioning cycle
2) Cooling system
3) Industrial cleaning
4) Water treatment (water purification)
5) Aquaculture
6) Fertilization / metering system
7) Environmental applications
A liquid that is thin, clean, non condensing, non explosive, and does not contain solid particles or fibers.
Liquid temperature: normal temperature type - 15 ℃ to + 70 ℃ hot water type + 70 ℃ to + 200 ℃
Ambient temperature + 40 ° C
Operating pressure: 10 bar
Medium pH: 4 ~ 9
